Dwyer压力表SG3pressure gauge SG3

Dwyer压力表SG31.5英寸工业压力表SG3压力表可以显示PSI和Bar(100KPA)两种单位,精度为2.5%。SG3的304不锈钢外壳和接触液体部分使用316不锈钢的设计有非常好的化学相容性。覆盖范围从全真空到300PSI,可以承受的最大温度达到140F (60C),底部或者背部1/8" NPT连接方式可选。产品规格:介质:兼容气体和液体元件材质:316不锈钢管,316不锈钢连接Dwyer压力表SG3pressure gauge SG3

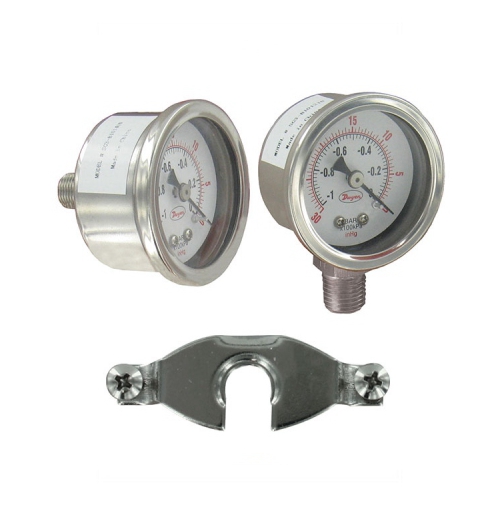

Dwyer压力表SG3
1.5英寸工业压力表

SG3压力表可以显示PSI和Bar(×100KPA)两种单位,精度为±2.5%。SG3的304不锈钢外壳和接触液体部分使用316不锈钢的设计有非常好的化学相容性。覆盖范围从全真空到300PSI,可以承受的最大温度达到140°F (60°C),底部或者背部1/8" NPT连接方式可选。
产品规格:
介质:兼容气体和液体
元件材质:316不锈钢管,316不锈钢连接器
外壳:304不锈钢
透镜:聚碳酸脂
精确度:±2.5% FS
压力范围:满标度
温度范围:-4 to 140°F (-20 to 60°C)
尺寸:1.5" (40 mm)
连接件:1/8" NPT.
重量:2.2 oz (63 g) 底部连接, 2.3 oz (65 g) 背部连接

Dwyer pressure gauge SG3


1.5 inch industrial pressure gauge




SG3 pressure gauge can display PSI and Bar( × 100KPA), with an accuracy of ± 2.5%. The 304 stainless steel shell and liquid contact part of SG3 are designed with 316 stainless steel, which has very good chemical compatibility. The coverage range is from full vacuum to 300PSI, and the maximum temperature that can be withstood is 140 ° F (60 ° C). The bottom or back 1/8 "NPT connection mode is optional.


Product specification:


Medium: compatible with gas and liquid


Element material: 316 stainless steel pipe, 316 stainless steel connector


Shell: 304 stainless steel


Lens: polycarbonate


Accuracy: ± 2.5% FS


Pressure range: full scale


Temperature range: - 4 to 140 ° F (- 20 to 60 ° C)


Size: 1.5 "(40 mm)


Connection: 1/8 "NPT


Weight: 2.2 oz (63 g) bottom connection, 2.3 oz (65 g) back connection
